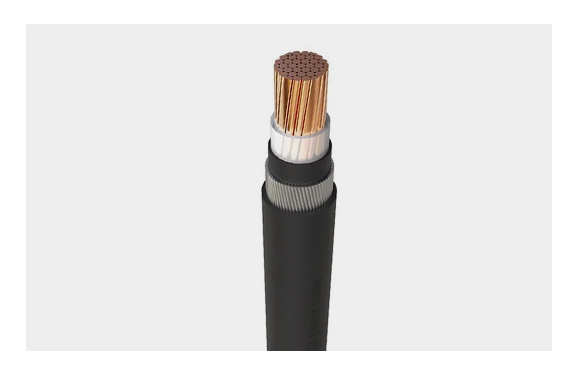

The Indian Electric Co., a former Single Core Copper Armoured Power Cable Dealers in Pune, Suppliers and Distributors in Pune.We are offering a new technological single core copper armoured cable at reasonable price, which are used for multiple functions such as high voltage transmission, low electromagnetic interference, higher mechanical properties and anti-corrosion.

These are made with improved insulation and armoring techniques which helps for increasing the performance in every industry. Let’s find out its multiple types, applications and benefits one by one!

Types of Single Core Copper Armoured Power Cable Dealers in Pune:

Being Leading Single Core Copper Armoured Power Cable Dealers in Pune, we are providing a best quality of cables which are made with multiple types of features. Here we have given a list of types:

Type	Description	Common Applications
XLPE (Cross-Linked Polyethylene)	These cables are improved with higher thermal and electrical properties with a high resistance to heat and chemicals.	Industrial and commercial power distribution, underground installations.
PVC (Polyvinyl Chloride)	The new technological insulation material offering good flexibility and resistance to environmental factors.	General wiring in buildings, light industrial applications.
LSZH (Low Smoke Zero Halogen)	This single core copper armoured cable is designed to emit minimal smoke and no halogens when exposed to fire, reducing toxic fumes.	Public buildings, airports, and places with high safety requirements.
Flexible Armoured Cables	Compared to other cables, this single core copper armoured cable has higher flexible armoring for ease of installation in confined or complex routes.	Robotics, machinery, and flexible applications requiring movement.

Technical Specification of Single Core Copper Armoured Power Cable:

We have included a technical sheet below for more information about our Single Core Copper Armoured Power Cable:

Specifications	Details
Conductor Material	Copper (High conductivity, flexibility, and corrosion resistance).
Conductor Configuration	Single Core (Designed for specific high-current, single-phase applications).
Insulation Material	XLPE (Cross-Linked Polyethylene), PVC (Polyvinyl Chloride), or LSZH (Low Smoke Zero Halogen).
Voltage Rating	0.6/1 kV, 6.35/11 kV, 19/33 kV (Depends on cable design and application).
Armouring Type	Steel Wire Armoured (SWA), Stainless Steel Armoured, or Aluminium Wire Armoured.
Outer Sheath	PVC, LSZH, or HDPE (High-Density Polyethylene) for enhanced environmental resistance.
Temperature Rating	-15°C to +90°C (XLPE insulated); -5°C to +70°C (PVC insulated).
Fire Resistance	Fire-resistant options available (Tested to IEC 60331 or equivalent standards).
Flame Retardancy	Flame retardant properties tested to IEC 60332-1.
Smoke Emission	LSZH cables emit low smoke and no toxic halogen gases in the event of a fire.
Mechanical Protection	Armoured for protection against mechanical impacts, crushing, and rodent attack.
Bending Radius	Minimum bending radius typically 10-15 times the overall cable diameter.

Characteristics of Single Core Copper Armoured Power Cable Dealers in Pune

Being the Leading single core copper armoured Power cable dealers in Pune, we are offering the best quality of cables that are manufactured with the advanced formation and used in multiple applications. Here we have listed some features below:

High Conductivity: Single-core copper armored armor cables have a pure copper core, which is great for carrying electricity. Copper is one of the best materials for conducting electricity, meaning it allows electricity to flow through with very little resistance. Due to these advanced qualities, these cables are used in industrial and commercial products or machines.
Strong Protection against Damage: These cables are built tough and are made with steel or aluminum. This armors is a protective shield, keeping the cable safe from physical damage like impacts or cuts. It’s ideal for installations where the cable might face rough conditions, whether it’s buried underground or exposed to the elements outdoors.
Single Core for Specific Uses: The single core design of these cables is typically used for specific types of electrical setups, especially in places where high voltage or high current is required. These are usually used in power distribution systems, big electrical equipment, or industrial plants where only one phase of electricity is being transmitted.
Reduction of Electromagnetic Interference (EMI): The metallic armoring not only protects the cable physically but also helps in reducing electromagnetic interference (EMI). EMI can cut off signals and affect performance in environments with lots of electrical noise, so this shielding feature is especially useful in such places.

Applications of Single Core Copper Armoured Power Cable:

As leading single core copper armoured power cable dealers in Pune, these cables are specially made for transmitting a power supply and data in a single, uniform way and are used in multiple industries such as:

Underground power transmission and distribution
Commercial and residential building wiring
Substations and switchyards
Motor control and protection
Control panels and switchgear
Automation and instrumentation systems
Railway electrification and signaling
Highway lighting and traffic management
Metro and underground rail systems
Shopping malls and commercial complexes
Geothermal and hydroelectric power stations
Nuclear power plants (non-critical applications)
Emergency lighting and backup power systems

As a leading single core copper armoured power cable Dealers in Pune, Suppliers & Distributors in Pune, we offered the best quality of Single Core Copper Armoured Power Cable at affordable rates , which are usually used for transmitting a high amount of current and data or signal over a single cable.

High-quality conductors, such as copper and insulators, are used for giving a long-lasting quality and are applied to multiple applications. Contact us today for more information about our single-core copper armoured cable!
